About The Off-Grid Batteries

£37.36£789.00

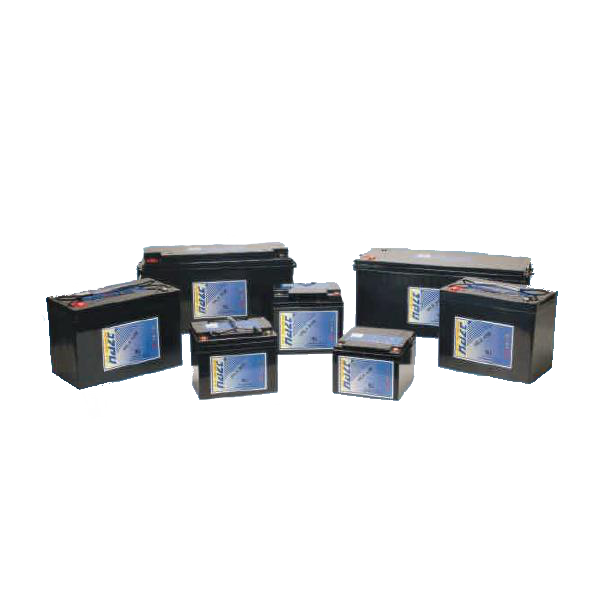

Choice of AGM or Gel deep cycle batteries to suit different application and system requirements. Both are sealed, maintenance free and suitable for marine applications. Call our technical team to discuss this further

Part No: BATTERIES

AGM Batteries for Solar and Wind Applications

Absorbed Glass Mat (AGM) batteries are a quality alternative to the traditional “wet” lead-acid ranges. They are very robust and so able to deep cycle more than wet batteries. The electrolyte is contained in a glass mat which will not leak, even if casing is broken so are ideal for leisure applications. AGM has a lower initial cost when compared to Gel and has superior performance for higher current discharges. 3-5 year expected life.

Battery Type

Dimensions (L x W x H)
(mm)

Weight
(kg)

Battery 12Ah AGM 12V 151 x 98 x 106  4
Battery 38Ah AGM 12V 195 x 130 x 160  10.9
Battery 59Ah AGM 12V 228 x 137 x 207  17.5
Battery 88Ah AGM 12V 259 x 168 x 208  21.5
Battery 91Ah AGM 12V 259 x 168 x 208  23.7
Battery 113Ah AGM 12V 305 x 168 x 208  30
Battery 135Ah AGM 12V 408 x 176 x 227  35
Battery 169Ah AGM 12V 340 x 173 x 280  39.6
Battery 188Ah AGM 12V 530 x 209 x 214  52.2
Battery 236Ah AGM 12V 520 x 240 x 220  66

Gel Batteries for Solar and Wind Applications

Gel batteries are designed for professional or system critical installations. Higher number of deep cycles are possible and a > 5 year expected life. Gel Technology delivers general power and long/deep discharges without the need for immediate recharge.

Many more sizes and battery specifications are available upon request. Choose battery capacity depending on charge input and electrical loads. Connect 2 or more in parallel to increase Ampere hours (Ah) capacity, or series to increase voltage, ie to 24 Volt.

To speak to a sales engineer about batteries for solar and helping you select the right model call +44 (0) 1536 201588 now

Battery Type

Dimensions (L x W x H)
(mm)

Weight
(kg)

Battery 7.5Ah GEL 12V 151 x 65 x 99  2.5
Battery 12Ah GEL 12V 150 x 97 x 100 4
Battery 18Ah GEL 12V 181 x 76 x 167  5.9
Battery 26Ah GEL 12V 166 x 176 x 126 8.8
Battery 36Ah GEL 12V 195 x 130 x 160 10.9
Battery 45Ah GEL 12V 197 x 165 x 170 14
Battery 60Ah GEL 12V 228 x 137 x 207 17.5
Battery 75Ah GEL 12V 272 x 165 x 188 21.5
Battery 88Ah GEL 12V 259 x 168 x 208 23.3
Battery 105Ah GEL 12V 305 x 168 x 208 28.4
Battery 119Ah GEL 12V 332 x 174 x 213 32.2
Battery 122Ah GEL 12V 408 x 176 x 227 35.4
Battery 161Ah GEL 12V 340 x 173 x 280 39.8
Battery 159Ah GEL 12V 482 x 170 x 242 44.3
Battery 191Ah GEL 12V 530 x 209 x 214 57.4
Battery 246Ah GEL 12V 520 x 240 x 220 66
Battery 263Ah GEL 12V 521 x 269 x 203 71
