Winter or summer, wherever you are in the world

you can have the natural source for electricity!

Do you have a need to run equipment at off-grid sites?
Are you spending thousands of pounds annually on changing batteries at remote sites?
would you like to stop the interruptions to service and inconvenience that comes from flat batteries?

Many customers find our in house specified solar PV systems hugely beneficial why not speak to one of our expert engineers today.

Applications

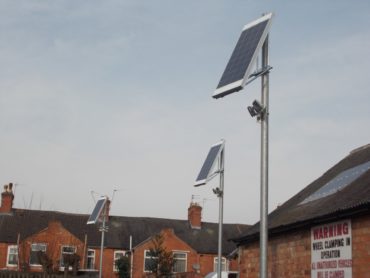

Where surveillance is needed at perimeter locations our solar and wind systems enable low power cameras and LED lighting to be installed without the cost and disruption of grid connection

Many commercial organisations require monitoring and transmission of collected data at remote places. Our systems can be quickly, discreetly and inexpensively deployed to provide vital information in the water and environmental industries.

In leisure applications solar panels can be permanently or temporarily fixed to keep batteries topped up and maintain continuity of service to fridges, lights and other on board conveniences.

Our solutions using Ameresco solar panels

At Marlec we aim to understand your system needs and tailor a battery charging solution to suit your application whether you need a solar “stand-alone” or “hybrid” wind/solar system incorporating one of our own Rutland Windchargers.

We will recommend to you a balance of solar and/or wind power to deliver the power to suit your needs perfectly, and at the most affordable price.

The Benefits of Our Solar Systems:

Enable installations previously considered in-feasible.
Cut or eliminate interruption to essential equipment service.
Deliver real cost benefit.
Proven, reliable and affordable.
Maintenance free and minimal work to install.

To speak to a sales engineer to help you select the right model call +44 (0) 1536 201588 now

Gallery

Specifications

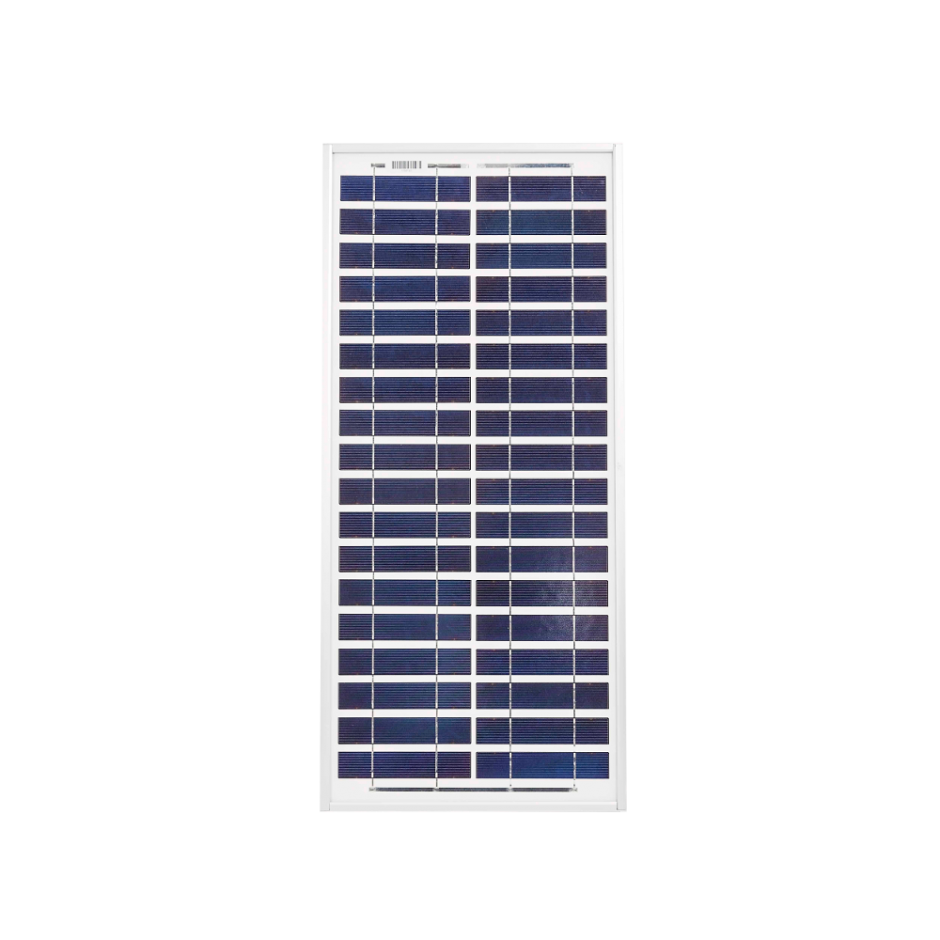

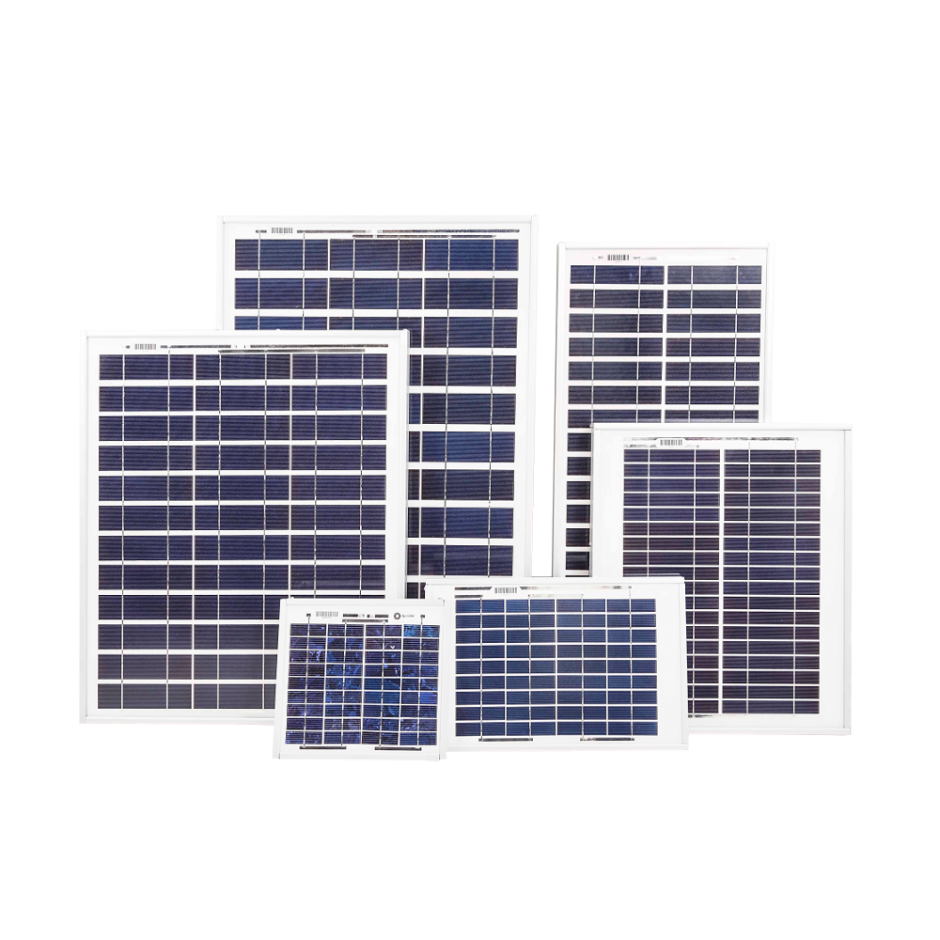

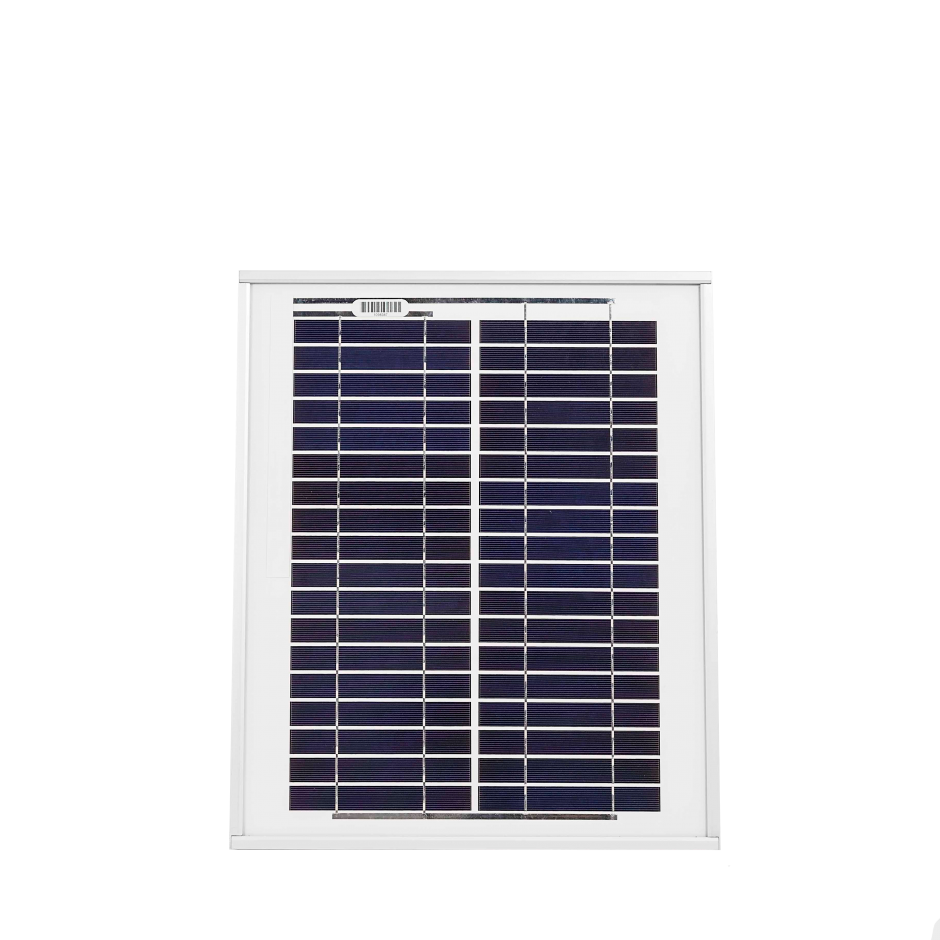

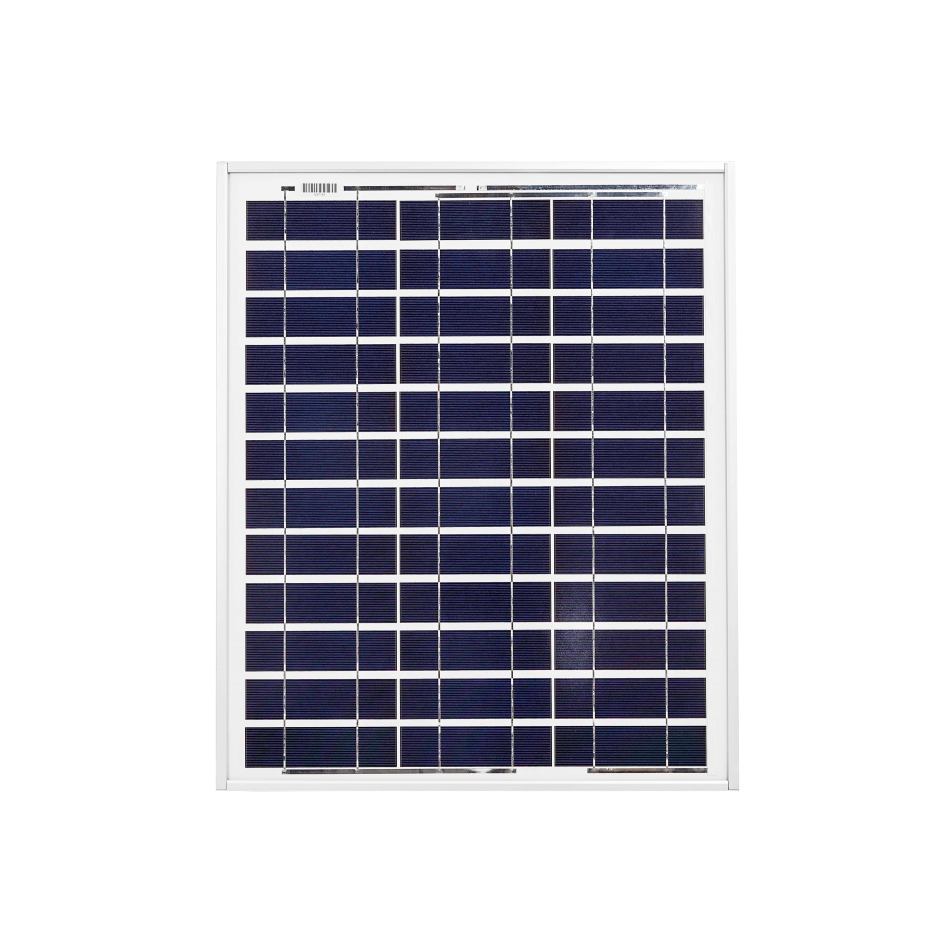

Model	Ameresco 10M	Ameresco 20J	Ameresco 30J	Ameresco 40J	Ameresco 50J	Ameresco 90J	Ameresco 140J
Maximum Power (W)	10W	20W	30W	40W	50W	90W	140W
Cells	36 cell crystalline	36 cell crystalline	36 cell crystalline	36 cell crystalline	36 cell crystalline	36 cell crystalline	36 cell crystalline
Dimension of module (mm)	421x269x22.5	420x502x50	790x358x50	650x537x50	835x537x50	1204x537x50	1504x674x50
Unit weight	1.5	3	3.9	5.75	6	7.7	12
Maximum power Voltage (Vmp)	18.1	18.2	18.2	18.2	18.9	18.9	17.5
Maximum power current (Imp)	0.55	1.1	1.65	2.2	2.65	4.76	8
Open circuit voltage (Voc)	21.8	22	22.1	22	22.3	22.3	22
Short circuit current (Isc)	0.62	1.2	1.75	2.37	2.8	5.04	8.2
Tolerance (%)	-0/+3	-0/+3	-0/+3	-0/+3	-0/+3	-0/+3	-0/+3
Module efficiency %	8.8	9.4	10.5	11.4	11.1	13.1	13.7
STC Details	STC: Irradiance 1000 W/m², cell temperature 25 °C, AM 1.5
Front Glass	3.2mm Glass
Junction box	4.5m Cable	IP65 J-Box
Frame	Anodised Aluminium
Part No	CA-10/91	CA-10/152	CA-10/153	CA-10/154	CA-10/155	CA-10/157	CA-10/159

Ameresco Quality & Features

Proven technology so you can be assured that the panels are going to work and last for many years to come
Highly resistant to water, abrasion, hail impact and other severe weather conditions
- Suitable for use in any climate
Guaranteed durability and warranties provide long-term reliable power solutions
- 90% Power output warranty over 12 years on solar panels over 40W
- 80% Power output warranty over 25 years on solar panels over 40W
- Five-year warranty – free from defects in materials and workmanship
- 90% Power output warranty over 12 years on solar panels less than 40W
Modern products that meet the highest safety standards
Manufactured in ISO 9001 and ISO14003 certified factories
- You can have confidence that BP Solar panels are designed and built to a rugged construction with frames that outperform lighter weight models.
Products are certified to IEC 61215
- Means your solar panel will provide the voltage and current well within the industry standards for a given performance rating
Products conform to EEC Directives: 89/33/EEC, 73/23/EEC & 93/68/EEC
- Means that these solar panel will not interfere with any other electronic equipment including radios and mobile phones
Framed modules are certified by TÜV Rheinland as Safety Class 11 (IEC 60364) equipment for use in systems up to 1000 Volts DC
- BP Solar panels are suitable to be used in both battery charging and grid connect applications.
Listed by Underwriter’s Laboratories for electrical and fire safety (Class C fire rating)
Solar panel solutions are highly versatile
- You can string them together easily to increase power or voltage rating, ie 12V or 24V
- Provides the right current for your application using single or multiple panels
