Why Do I Need A Charge Controller

A charge controller fitted to your system will ensure:

  • The system operates automatically
  • Prevents damage to your batteries through over voltage

….so if the batteries become fully charged in your absence from the site the batteries will not be overcharged.  All Marlec windcharger controllers include LED’s for simple indication of the system’s operation, advanced models include LCD’s to indicate battery voltage, charge current and other features.

Technical Features

Pulse Width Modulation (PWM) (regulation finely controls voltage regulation, monitoring battery voltage to prevent overcharge)

As peak voltages are reached the input charge from the wind & solar chargers is tapered, gradually reducing from bulk charging to float stage level. This feature gradually reduces the speed of the turbine to an eventual “idle” thus extending the working life of the windcharger. As the battery discharges the wind turbine responds by increasing speed to deliver more power. Solar power is also tapered in the same way.

Microcontroller (intelligently controls multi-stage charging from bulk through to float phase)

This feature ensures that batteries are optimally charged, especially when unattended. Multi-stage charge control delivers appropriate charge levels required to ensure your batteries get the maximum power they are able to retain and remain float charged ready for use.

Temperature compensation (automatically adjusts the Voltage settings of the regulator to take account of varying temperatures).

Hot and cold ambient temperatures affect battery voltages. This feature ensures maximum charging efficiency wherever you are in the world. Voltage settings @ 25°C for nominal 12V and 24V are: Float Voltage: 13.8V / 27.6V Bulk Voltage: 14.4V / 28.8V

Manual shutdown switch (allows the user to stop the wind & solar chargers if required).

The windcharger slows to an “idle” in this mode and no power is delivered to the battery. This enables the user to safely brake the turbine.

User voltage programme feature

Enables the user to reset voltage cut in levels. Requires a variable DC power supply

Automatic voltage detection (12V or 24V systems)

Batteries must be connected first for correct auto detection

Built in blocking diode

This avoids conflict with other charging sources to the same battery eg engine charging Solar panels must be fitted with appropriately rated diodes to prevent reverse current when shaded

HRSi Controller

(Single Battery Controller)

Suitable for the following Windchargers:

  • 504  + 160W maximum peak rated solar panel
  • 913  + 160W maximum peak rated solar panel
  • 910-4 + 160W maximum peak rated solar panel
  • 914i +160W maximum peak rated solar panel

Can be used with 12V or 24V battery banks by auto-setting upon connection.

Packed Dimensions:   160 x 110 x 60 mm  255g

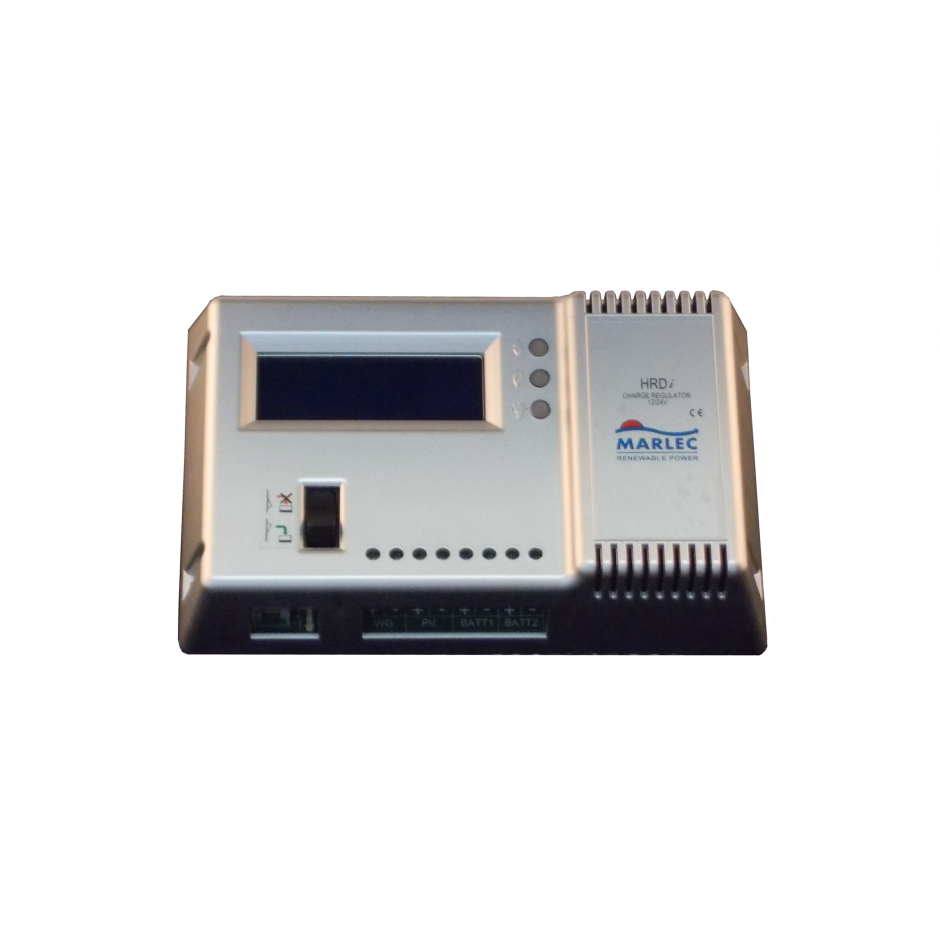

HRDi Controller

(Dual Battery Controller)

Suitable for the following Windchargers:

  • 504  + 160W maximum peak rated solar panel
  • 913  + 160W maximum peak rated solar panel
  • 910-4 + 160W maximum peak rated solar panel
  • 914i +160W maximum peak rated solar panel

Can be used with 12V or 24V battery banks by auto-setting upon connection.

Packed Dimensions: 230mm x 150mm x 60mm 60g

HRDi Remote Display

View the HRDi digital display at a convenient location such as a chart table on board. Using the push buttons select the screens available, change settings and shutdown the charge sources; wind turbine and solar panels.

Supplied with a 3m serial cable and back box for either surface mounting or prepare a cut out and recess for flush fitting.

Surface Mount: 125x75x50mm 203g

Recess Mount: 125x75x9mm 132g  Cut out: 100x62mm

Packaged: 155x145x60mm 320g
