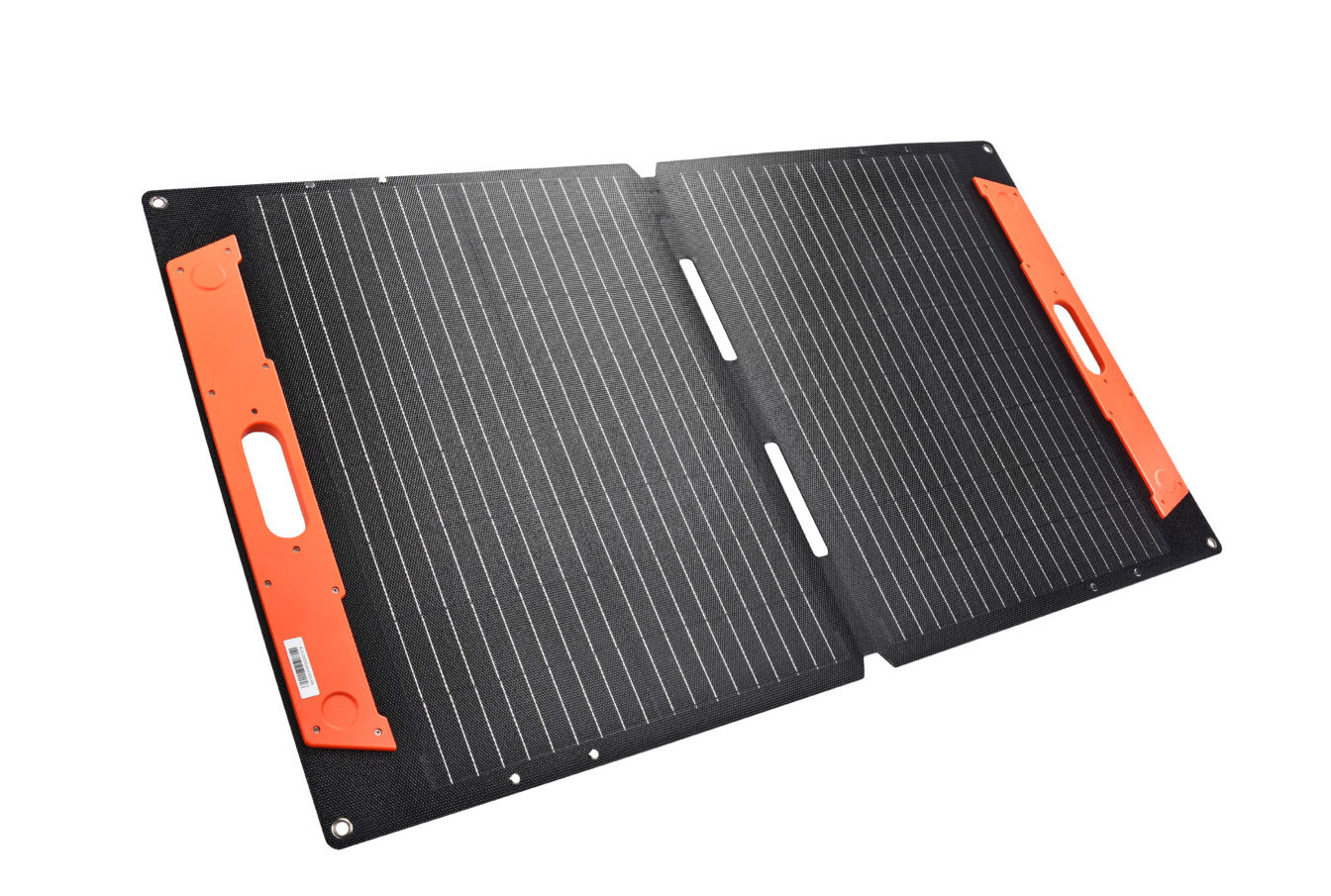

About The Spectra Folding Solar Panel

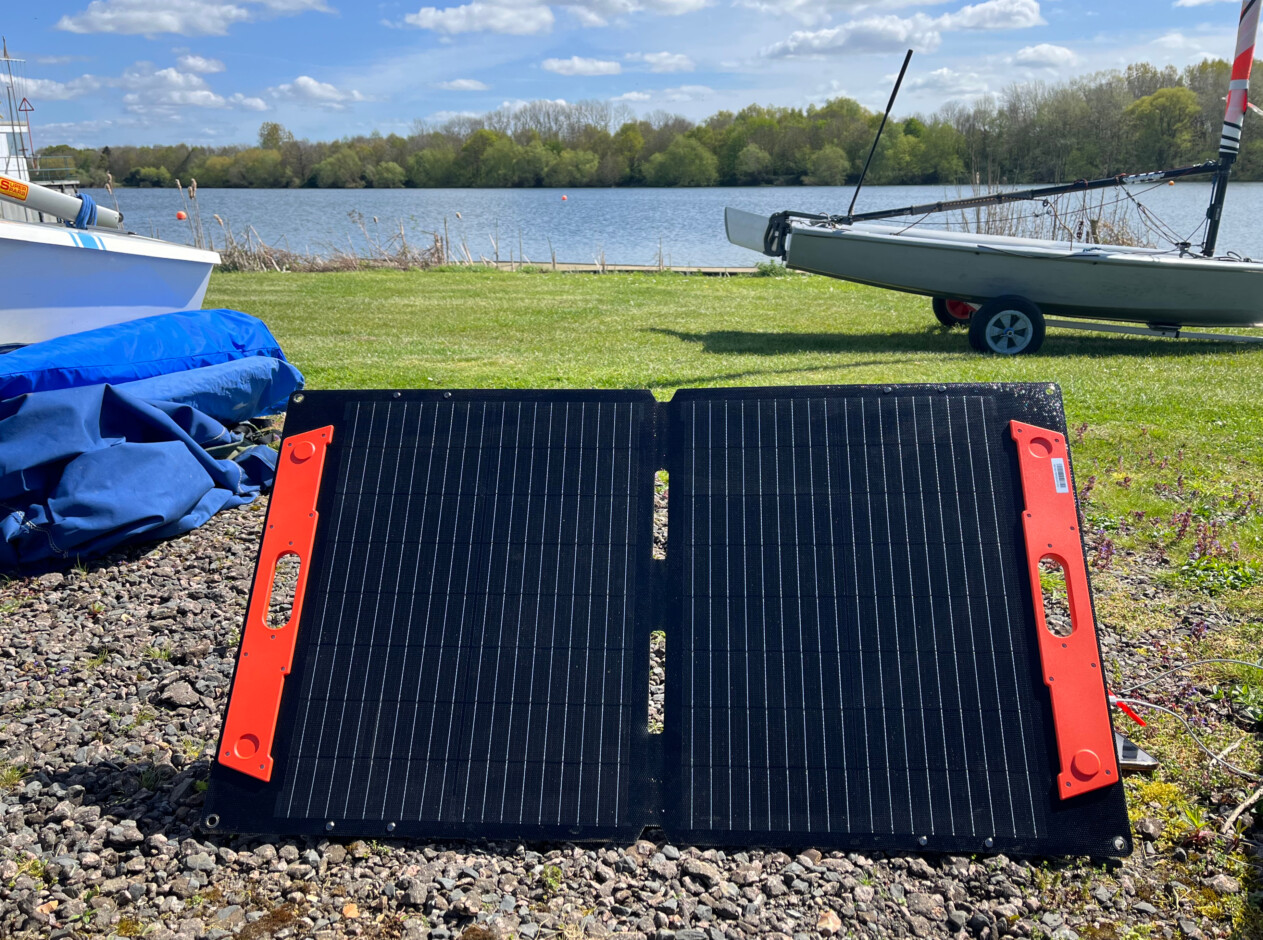

The all new Spectra Foldable solar panels can be used anywhere, the versatility and lightweight features allow for the user to carry the solar panel with them wherever they may need power, examples include: camping, fishing, hiking etc…

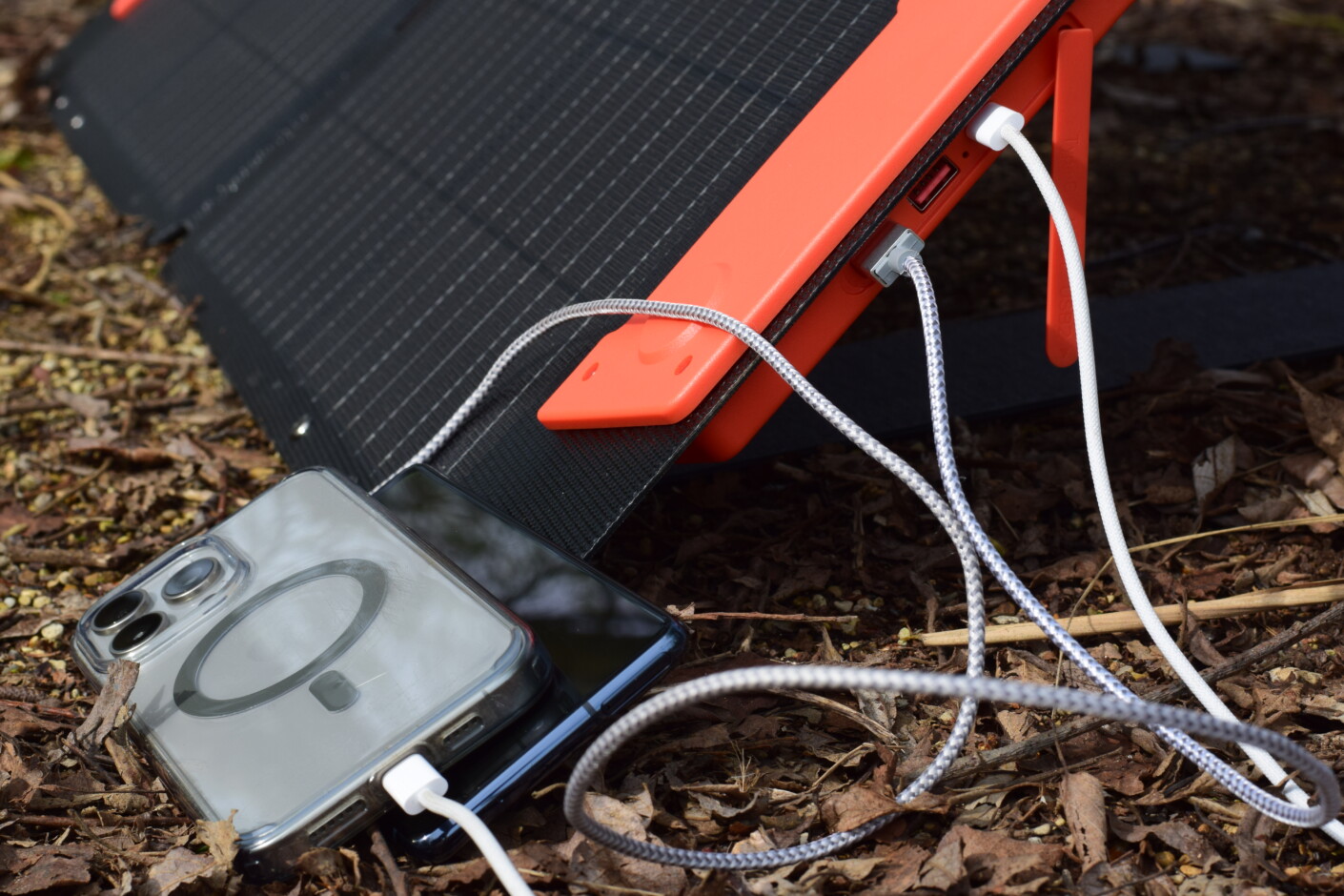

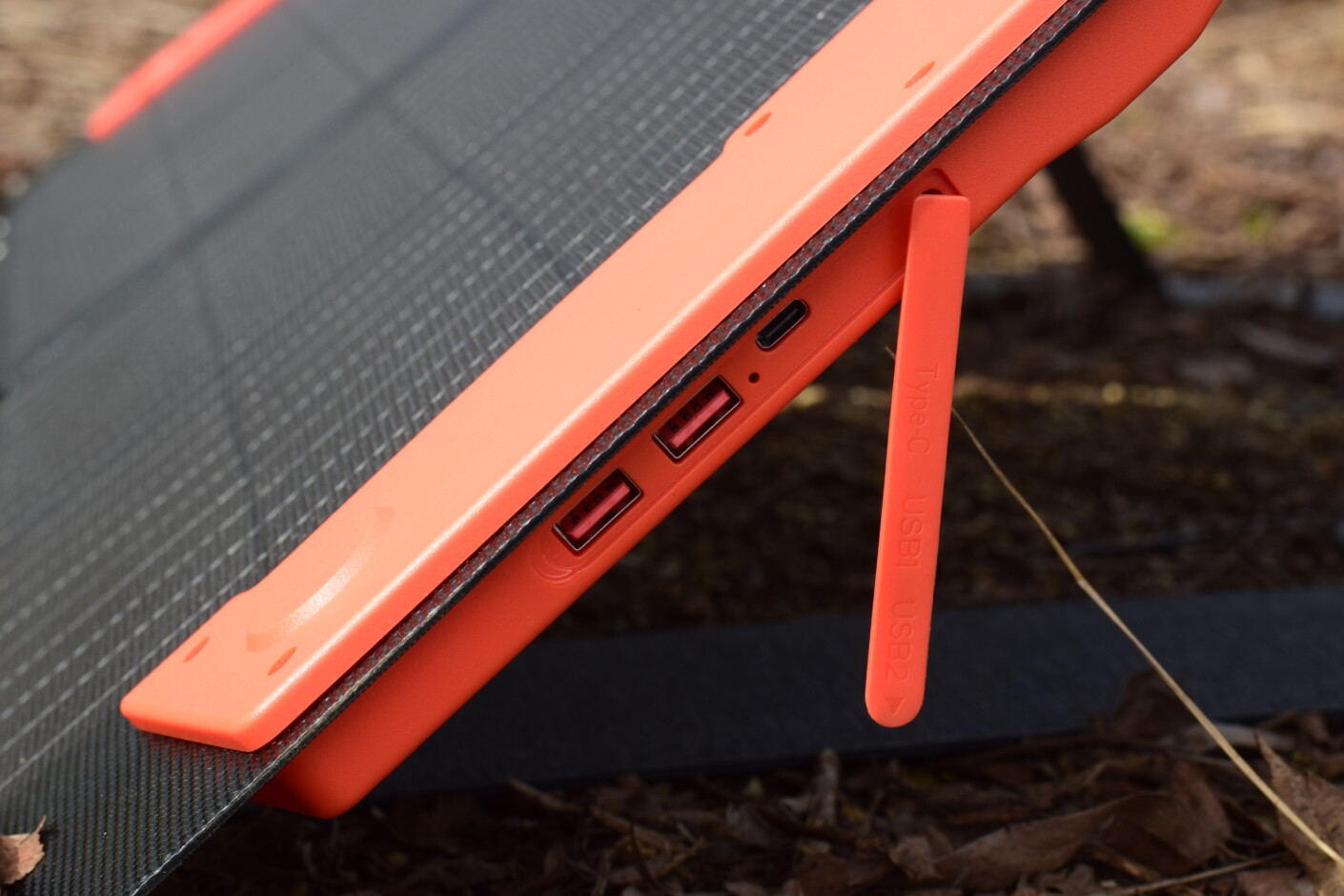

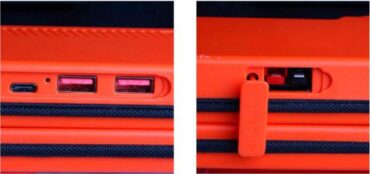

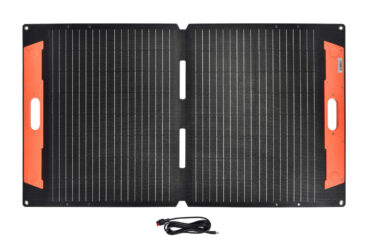

The 100W portable panel, ideal for use on the go with 2xUSB, 1x USB-C ports and Anderson output for connection to your battery.

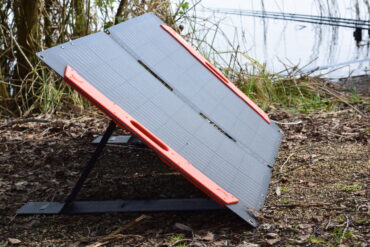

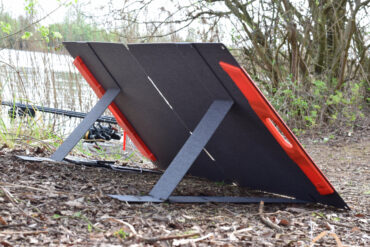

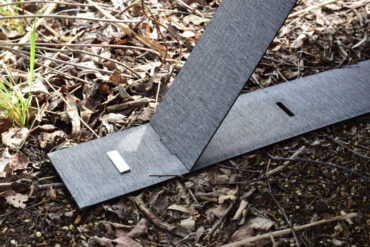

The fold out support legs allow the user to angle the panel in any direction to maximise solar output – great to maximise the panel output.
Specification:
| Model | Spectra Foldable 100W |
| Part Number | CA-10/7100FOLD |
| Cell Type | PERC Mono |
| Peak Power | 100W |
| Maximum Power Voltage (Vmp) | 18V |
| Maximum Power Current (Imp) | 5.50A |
| Open Circuit Voltage (Voc) | 22.5V |
| Short Circuit Current (Isc) | 5.90A |
| Module Efficiency | 23% |
| Weight | 3KG |
| Dimension Folded | 607x537x40mm |
| Dimension Unfolded | 1092x617x22mm |
| Output 2x USB-A | Output voltage: 5V, 9V, 12V Output power: Max 18W |
| Output 1x USB-C | Output voltage: 5V, 9V, 12V, 20V Output power: Max 60W |
| Output 1x Anderson to DC5521 | DC |
Also available – Battery Link Cable for Foldable PV
To connect the Spectra 100W Foldable solar panel directly to your battery, or via a suitable solar controller you can also select the Battery Link Cable.
The cable is 2 metres and supplied with an Anderson plug to connect to the solar panel and ring terminals to fit the battery or can be removed for connection into the Controller.
Gallery
