About The Spectra PERC-S Solar Panels

£13.96 – £311.81

Marlec’s new Spectra PERC Shingle solar panels are a new efficient way to generate free solar energy while using the minimum space and weight. You can enjoy faster charging to run all the things you want whether it’s for leisure or for critical commercial use.

The Spectra PERC panels are perfect for battery charging at applications such as Motor homes & caravans, off-grid homes & cabins, sailboats, telecoms & security systems, street lighting & signage.

*Please note the model variances:

  • 1. Entirely black cell structure includes 30W, 65W, 110W, 150W, 240W, 400W
  • 2. Silver/ grey cell structure includes 85W, 220W, 300W



  • Please observe the solar panel specifications. It is important to choose the correct solar controller for your requirements. Consider an MPPT controller for modules with high operating voltages.
Part No: N/A

About Spectra PERC-S Solar Panels?

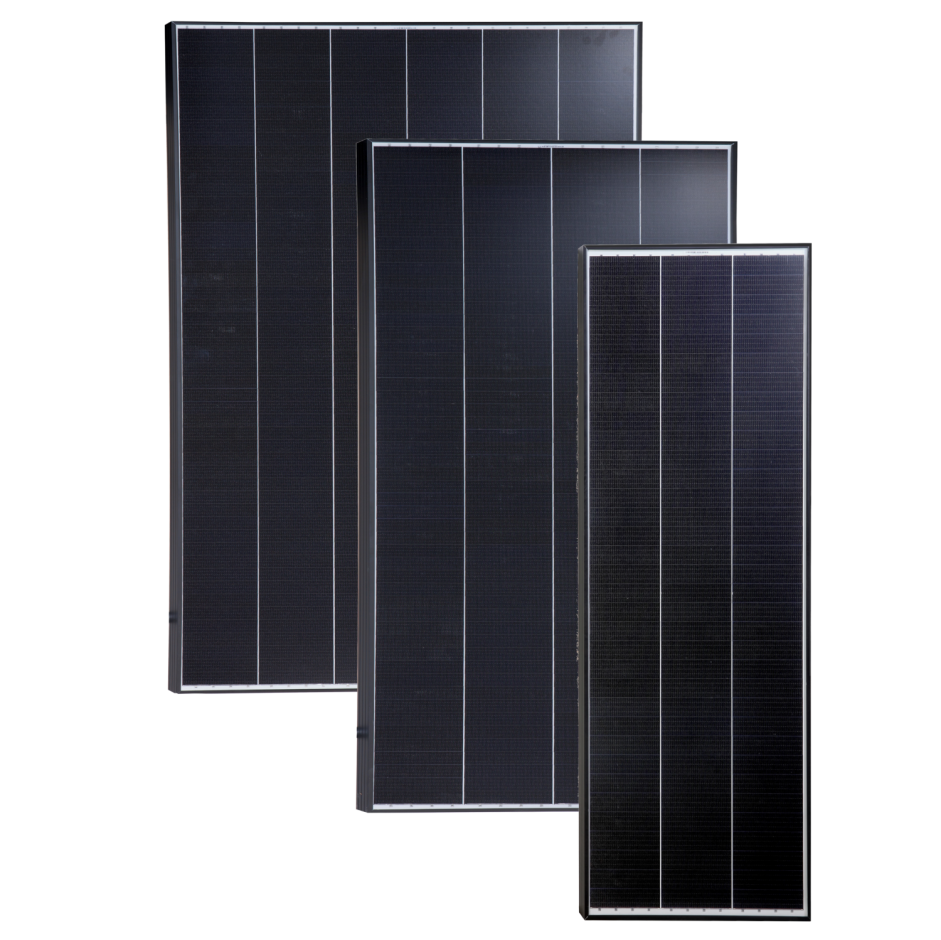

The Spectra PERC-S solar panels have a rigid aluminium frame and sleek black cells that allow the panels to stand out from others in the market; its unique cell design and durable build allow the panel to be highly effective in any off-grid application.

Many of the Spectra PERC-S solar panel range all have identical frame lengths making it easy to combine panel sizes to accommodate the space available.

Why Choose Spectra PERC-S?

√ PERC (Passivated Emiter Rear Cell) Technology.

√ Monocrystalline Solar Cells

√ Shingled Cell Module Design (Shade Resistant Technology).

√ High light absorbency especially in low light.

√ Highly reliable internal electrical connections.

√ No reflective metal lines on the cells.

√ Increased efficiency.

√ Many modules have same frame lengths to accommodate available space.

√ Reinforced Black Aluminium Frame

√ Safety Glass

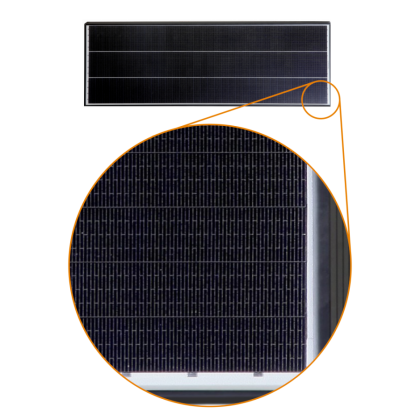

Spectra PERC-S Unique Cell Design

Unlike conventional panels the Spectra PERC-S range uses intelligent PERC (Passivated Emiter Rear Cell) technology and has a Shingled Cell Module Design to achieve 15% higher energy efficiency.

PERC (Passivated Emiter Rear Cell) Technology allows the cell to absorb more light than other conventional cells and improves the modules performance during low light conditions.

Shingled Cell Module Design is the way the sliced cells of the panel are connected. The Spectra PERC-S range use conductive glue that connects each each slice of cell.

The two bypass diodes on both sides of the module and the cell connection being in both parallel and in serial limit the Hot Spot risks under partially shield exposure conditions .

Specification

Model Type PERC S30 PERC S65 PERC S85 PERC S110 PERC S150 PERC S220 PERC S240 PERC S300 PERC S400
Marlec Part Number CA-10/521 CA-10/565 CA-10/522 CA-10/523A CA-10/524 CA-10/5220 CA-10/5240 CA-10/5300A CA-10/527A
Peak Power  30W 65W 85W 110W 150W 220W 240W 300W 400W
Module efficiency  20.02% 20.02% 19.88% 20.81% 20.63% 20.93% 21.18% 20.93% 20.93%
Cell Type Monocrystalline PERC solar cells with shingle technology
Weight 2.3kg 4.2kg 5.3 kg 6.3 kg 8.3 kg 11.3kg 12.5kg 19kg 21.0 kg
Dimensions  318 x 515 x 30mm 668 x 486 x 35mm 454 x 942 x 35mm  561 x 942 x 35mm 775 x 942 x 35mm 1096 x 942 x 35mm 1203 x 942 x 35mm 1570 x 885 x 35mm 1660 x 1134 x 40mm
Frame Black Anodised Aluminium
Junction Box IP-65 IP-68 with 2 bypass Diodes IP-68 with 3 bypass Diodes
Cables Wireable Junction Box 2 x 4.0 mm2 cable length: 900 mm
Connectors MC4 compatible

See downloadable datasheet for full electrical specification.
