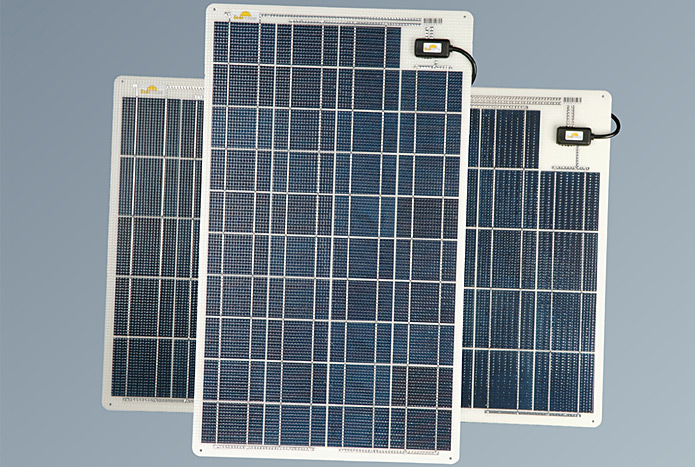

SunWare Solar Panels

The solar panel of choice… and a must for long distance cruising!

Imagine, every time you board your yacht, all the battery power is immediately available. Satellite

navigation, computer, refrigerator, engine starting and all the on board comforts and safety features

for a day cruise or trip on the high seas.

• Do you finding yourself running the engine just to keep the service batteries charged when cruising ?
• Fed up with the noise…. and wear on the generator ?
• Fed up with the cost of refuelling so often ?

The solution is to save your batteries from deep discharge with SunWare solar panels.

• Silent battery charging at work while you relax into the sail !
• Imagine a refrigerator that keeps it's cool !  Food preserved and drinks cooled just as you want them.
• How great to set sail with the peace of mind that your batteries are being replenished as you enjoy the comforts on board !

When you invest in SunWare solar panels you are plugging into in a solar panel designed for marine environments, built to the very highest quality standard of materials and workmanship. Each solar panel is individually tested to industry standards and this is backed up by a 3 year warranty.

Gallery – Click image to see more details

Features

• Available in two ranges

• SunWare Marine Modules – 24W, 36W and 70Watt.
  • SunWare’s 24W & 36W Marine modules are ideal for boats with low to medium battery charging requirements. They effectively maintain and top-up batteries whilst standing and typically replace some of the power consumed whilst        on board.
  • The 70W Marine module is suited to live-aboards and those spending holidays on board, the 70W solar panel will assist in keeping the refrigerator and other appliances running.

• Compact Marine Modules  – 48W and 69Watt.
  • The Compact range is truly space saving and with modules available in the high power range these are the module of choice for live-a boards.
  • Available in 48W & 69W the Compacts use 39 cells ensuring the best possible ratio of power generated to surface area.

• High efficiency – All SunWare solar panels are efficient at converting sunlight into power as all models are made up of 39 or 40 photovoltaic cells, a feature that has 3 distinct advantages over standard 36 cell marine solar panels
  • They run cooler and therefore deliver better performance, especially in summer months and in hotter climates.
  • The additional cells assist in compensating for lost voltage in overcast conditions delivering power for longer than solar panels with fewer cells.
  • The additional cells keep the operating temperature lower thus avoiding reduction in efficiency and allowing the panels to be installed directly onto the surface without the need for rear ventilation. 36 cell panels experience a fall in efficiency in high temperatures.

• A clear EVA surface which thermally seals the photovoltaic cells
  • That way the cells are protected against water ingress.

• A structured Teflon Coated surface.
  • It can be walked on in deck shoes.
  • It is designed to reduce the possibility of slipping even in wet weather.

• A V4 marine stainless steel substrate
  • It is totally resistant to atmospheric corrosion and salt water.
  • The back of the panel has a white powder coat finish for extra protection.

• SunWare panels are slim line and flexible up to 3% (=3cm over 1m) across their length
  • this means you can easily and conveniently place them on curved solid surfaces.

• Each panel is supplied with 3m of sea water-tight cable and a diode junction box kit.
  • The diode kit can be installed at a location before the regulator or battery to prevent reverse power from the battery        to the panel in darkness.

• SunWare panels are supplied for 12V battery charging
  • Multiple units can be connected in parallel to increase Ampere hours or series to increase voltage to 24V. (24V panels available to order).

SunWare solar panels have the highest power output to surface area ratio of semi-flexible panels on the market. Their efficient polycrystalline cells convert sunlight to power into your battery so you can have the luxury of cool drinks and keep the essential equipment like the depth sounder running too.

Call Marlec to speak to a sales engineer to help you select the right model on +44 (0) 1536 201588 now

Buy Now

Sunsei SE150 (150ma 12V) 2W 12V	CA-10/35	£34.50
SunWare Compact 69W 12V	CA-10/69	£682.95
SunWare Compact 48W 12V	CA-10/68	£544.95
SunWare Standard 70W 12V	CA-10/70	£689.95
SunWare Standard 36W 12V	CA-10/67	£449.95
SunWare Standard 24W 12V	CA-10/66	£349.95
SunWare Edge Protection- fitted per metre	CA-12/29	£8.80
Sunware Module PUR Adhesive	CA-12/26	£12.50
Sunware Module Side Fix Clip	CA-12/24	£12.50
Sunware Module Mid Fix Clip	CA-12/25	£11.50
