Modified Sinewave Inverters
The convenience of mains appliances when you’re on the move. Choose from Marlec’s compact and slimline 12/24 Volt Modified Sinewave Inverters to power up your 230 Volt appliances.
Power outputs available range from 150 Watts to 1,500 Watts in 12 and 24 Volts models (see table below)
Marlec Inverter Design and Safety Features
- The lifespan of your battery is prolonged by:
- low battery alarm and shutdown to protect deep discharge from the battery
- high battery shutdown to protect from overload
- Built in protection features include:
- high temperature alarm and shutdown short circuit protection
- shutdown when the power demand from the appliances exceeds the inverter limit earth point to casing & AC output for safe useage (please note instruction manual)
- removable UK plug socket adaptor for inverter use in either UK or EU
Model Specifications
| 12 VOLT MODELS | GP-12-150 | GP-12-300 | GP-12-600 | GP-12-1000 | GP-12-1500 |
| D C Input Voltage (V) | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| Continuous Output (W) | 150 | 300 | 600 | 1000 | 1500 |
| Surge Output (W) | 450 | 1000 | 1500 | 2500 | 3500 |
| No Load Current (A) | Less Than 0.3 A | Less Than 0.3 A | Less Than 0.3 A | Less Than 0.8 A | Less Than 2.0 A |
| D C Input Fuse (A) | 20 | 15/35 | 40 x 2 | 35 x 4 | 35 x 6 |
| Dimensions (mm) | 165 x 91 x 58 | 190 x 91 x 58 | 242 x 91 x 58 | 310 x 205 x 75 | 395 x 290 x 90 |
| Net Weight (Kg) | 0.82 | 1.10 | 1.66 | 3.82 | 5.54 |
| Marlec Part Number | CA-14/41 | CA-14/42 | CA-14/43 | CA-14/44 | CA-14/45 |
| 24 VOLT MODELS | Note other specs. As 12 V Models | GP-24-300 | GP-24-600 | GP-24-1000 | GP-24-1500 |
| D C Input Voltage (V) | 20-30 | 20-30 | 20-30 | 20-30 | |
| Continuous Output (W) | 300 | 600 | 1000 | 1500 | |
| Surge Output (W) | 1000 | 1500 | 2500 | 3500 | |
| Dimensions (mm) | 190 x 91 x 58 | 242 x 91 x 58 | 310 x 205 x 75 | 395 x 290 x 90 | |
| Net Weight (Kg) | 1.10 | 1.66 | 3.82 | 5.54 | |
| No Load Current (A) | Less Than 0.3 A | Less Than 0.3 A | Less Than 0.4 A | Less Than 1.0 A | |
| D C Input Fuse (A) | 30 | 40 | 30 x 2 | 35 x 4 | |
| Marlec Part Number | CA-14/42X | CA-14/43X | CA-14/44X | CA-14/45X |

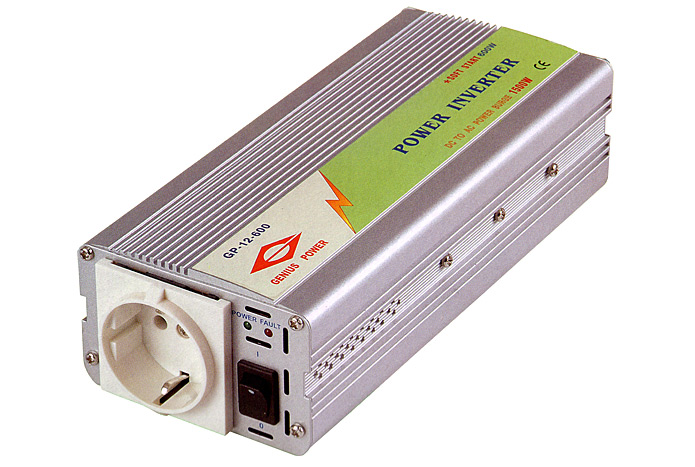

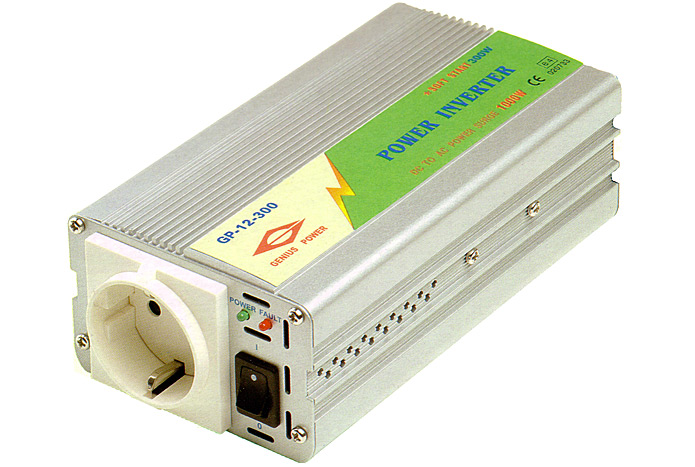

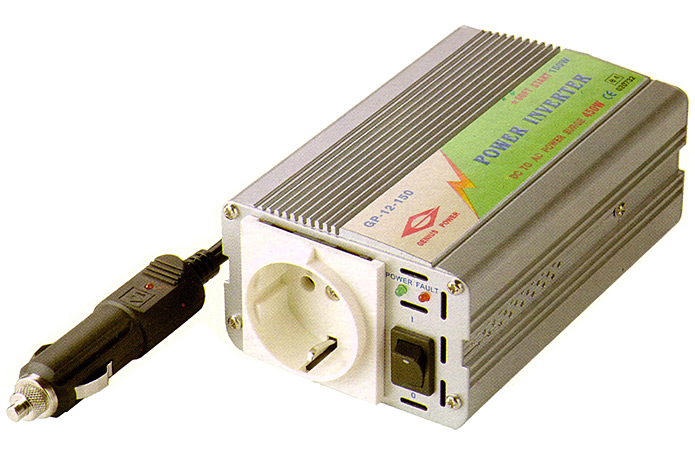

Gallery – Click image to see more details
More questions? For answers call us at Marlec where we would be pleased to help you.
To speak to a sales engineer to help you select the right model call +44 (0) 1536 201588 now
For a full Technical Datasheet click here
Buy Now
| Prices Include VAT |
| Genius Inverter 150W 12V | CA-14/41 | £32.95 |  |
| Genius Inverter 300W 12V | CA-14/42 | £36.95 | |
| Genius Inverter 600W 12V | CA-14/43 | £64.96 | |
| Genius Inverter 1000W 12V | CA-14/44 | £129.95 | |
| Genius Inverter 1500W 12V | CA-14/45 | £241.96 | |
| Genius Inverter 300W 24V | CA-14/42X | £42.95 | |
| Genius Inverter 600W 24V | CA-14/43X | £66.95 | |
| Genius Inverter 1000W 24V | CA-14/44X | £134.95 | |
| Genius Inverter 1500W 24V | CA-14/45X | £249.95 | |
